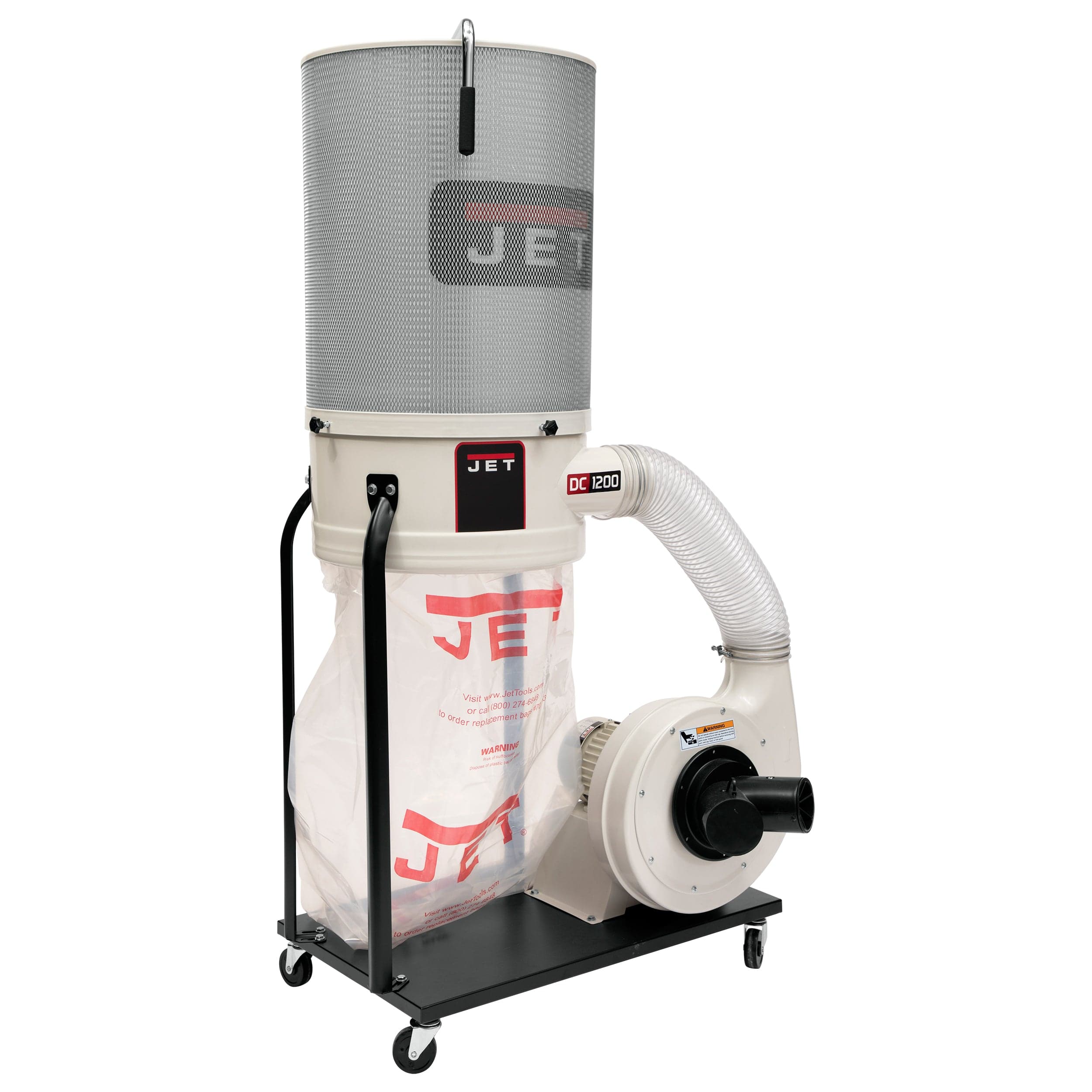

Vortex Cone Dust Collector with 2-Micron Canister Kit - 2 HP 3 Ph 230/460V - DC-1200VX-CK3
The Jet® DC-1200VX-CK3 Dust Collector offers superior particle collection thanks to its exclusive Vortex Cone™ technology, which improves chip separation to prevent the filter's clogging, strengthening performance quality and extending the lifespan of the machine. The totally enclosed, fan-cooled, 2-horsepower motor is rated for continuous duty with more than enough horsepower for efficient air movement, while the precision-balanced, all-steel impeller maximizes air intake. The see-through design of the dust bag prevents premature bag change-outs while filtering up to 98% of 2-micron particles, and the sewn-in snap ring makes for rapid insertion and removal. Its canister is installed and removed without tools thanks to the large, ergonomic knobs that are easy to handle. Plus, four heavy-duty casters make for easy mobility around the workshop.
Features:
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portability
Specifications:
- Model: DC-1200VX-CK3
- Motor Type: TEFC
- Motor: 2 HP
- Motor Phase: 3Ph
- Motor Voltage: 230/460V
- Prewired Voltage: 230V
- Motor Current: 6/3A
- Overall Size (L x W x H): 37" x 28" x 79"
- Net Weight: 127 lb
- Sound Rating at 3' Distance: 80-85db
- 1-Hose Connection Diameter: 6"
- 2-Hose Connection Diameter: 4"
- Bag Diameter: 20"
- Filter Bag Length (installed): 25"
- Collector Bag Capacity (cubic feet): 5.3
- Collector Bag Length: 29"
- Air Flow at 4" (CFM): 1,200
- Static Pressure (inches of water): 11-1/2"
- Filter Bag Efficiency: 98% of 2 micron
- Air Inlet: (1) at 6" or (2) at 4"
- Impeller Diameter: 12"
- Impeller Material: Steel
- Separator Tank Diameter: 20"
- Separator Tank Height: 10"
What's Included:
- (1) Jet® Vortex Cone Dust Collector with 2-Micron Canister Kit - 2 HP 3 Ph 230/460V - DC-1200VX-CK3
