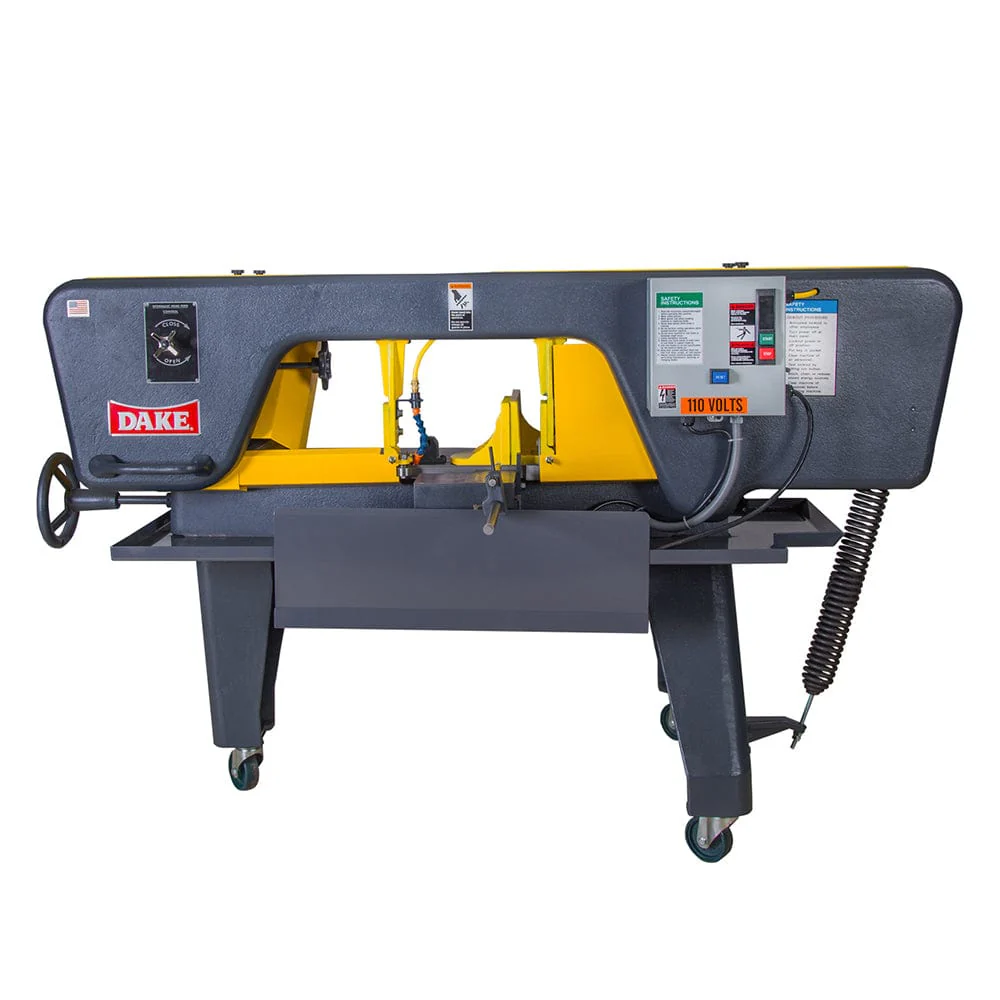

Heavy Duty Horozontal Bandsaw 10" Rounds- 18" Flat- 1 HP- 1" Blade - 110V 1 Ph
Features:
- Heavy duty, American made medium production saw, comes with one standard Bi-metal blade
- Hydraulic controlled, gravity head feed, for hands free cutting. Hydraulically variable head feed control for regulation of head feeding rate. Machine automatically shuts off after cut is complete
- Cast two-piece head frame and large pivot bar, for extreme rigidity and long life
- Gear box is driven via âVâ belt and step pulleys for fast speed changes
- Low voltage switches- thermo overload protection, magnetic starter switch low voltage protection
- Miters up to 45°
- Vise has quick release for quick change over of material sizes
- Chip brush keeps the gullets of the blade clean
- Cast legs are of a three-point design. This unique design lets the machine sit flat, even on uneven floor surfaces
- The saw is fully guarded for operator safety
- Capacity: 10â rounds, 18â flats
- Horsepower: 1
- Voltage: 110V, Single Phase
- Maximum Blade Speed: 270 fpm
- Blade Width: 1"
- Blade Length: 137"
- Blade Speeds: 50/90/160/270 fpm
- Solid Round 90Ë Capacity: 10"
- Solid Round 45Ë Right Capacity: 7"
- Solid Round 60Ë Right Capacity: n/a
- Solid Square 90Ë Capacity: n/a
- Solid Square 45Ë Right Capacity: n/a
- Solid Square 60Ë Right Capacity: n/a
- Solid Rectangle 90Ë Capacity: 4 Âœâ x 18â
- Solid Rectangle 45Ë Right Capacity: 4" x 10"
- Solid Rectangle 60Ë Right Capacity: n/a
- Bed Work (area): 11â x 18â
- Weight: 935 lbs
- Height: 75"
- Floor Space: 30â x 65â
- Floor Space Left to Right: n/a
- Floor Space Front to Back: n/a
- Floor to Bed: 23 3/4â
- Vise
- Magnetic Starter
- Blade Tension
- Frame Feed Control
- Flood Coolant System
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 7-21 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturersâ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturerâs defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
